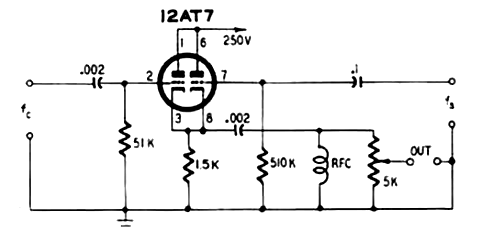

This circuit is from an oscilloscope manual from the 1950's. The circuit uses a double triode and the current draw is a few milliamps. Fc and fs are the carrier and modulation frequencies.
