Remember that the transistor must be mounted on a heat sink.

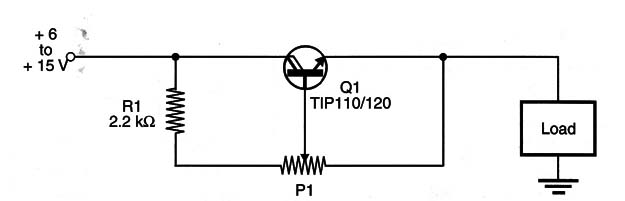

The value of resistor R1 must be established experimentally to match the gain of the transistor with the desired range of control. Values in the range between 4.7 and 1 M ohm are good candidates.
