Automatic cooker hood (CB7023E)

Details
Written by: Newton C. Braga

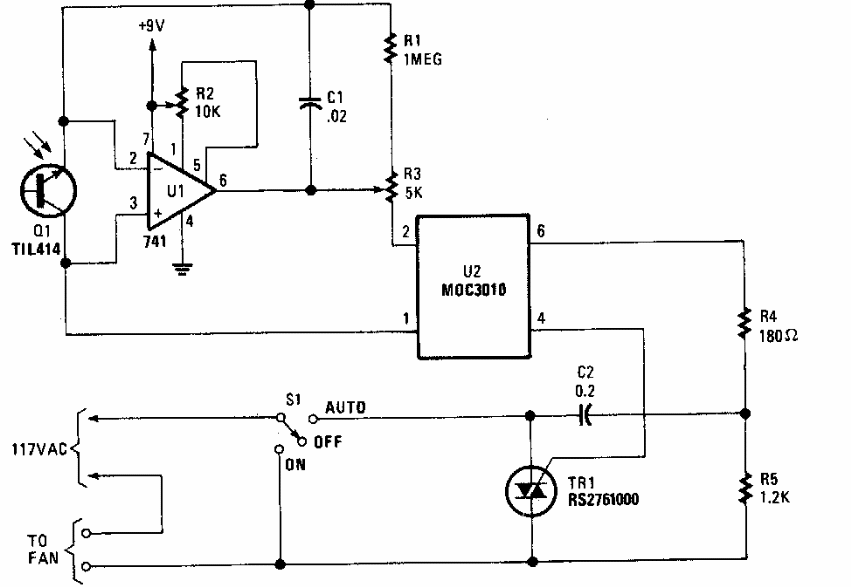

    This circuit was obtained in a Popular Electronics of the 90s. It against a kitchen hood based on the emission of heat by the stove. The circuit uses common components. U2 is the optical type diac trigger.




| Clique na imagem para ampliar |
