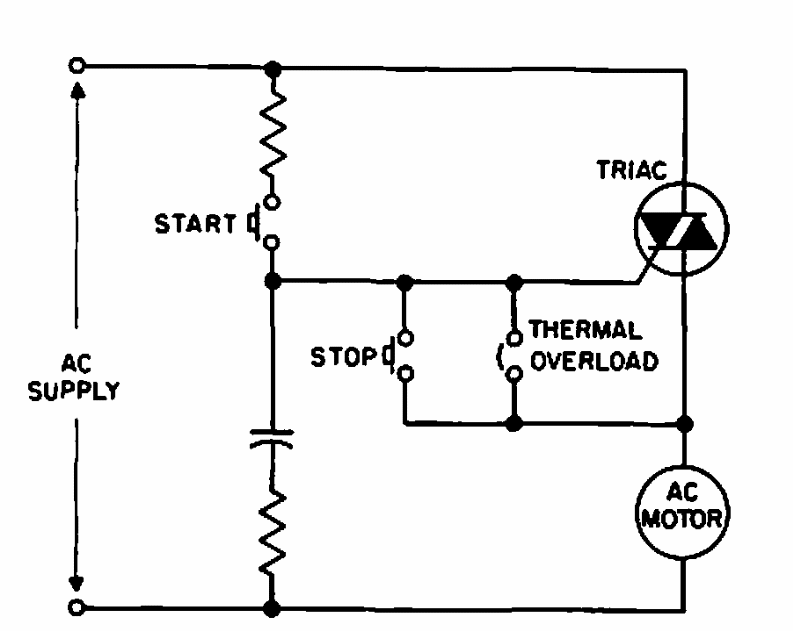

This circuit is suggested by General Electric in 1966 documentation. The Triac must match the engine. The resistors depend on the triac's sensitivity to firing.
| Clique na imagem para ampliar |
Triac start for AC motor (CB7241E)
