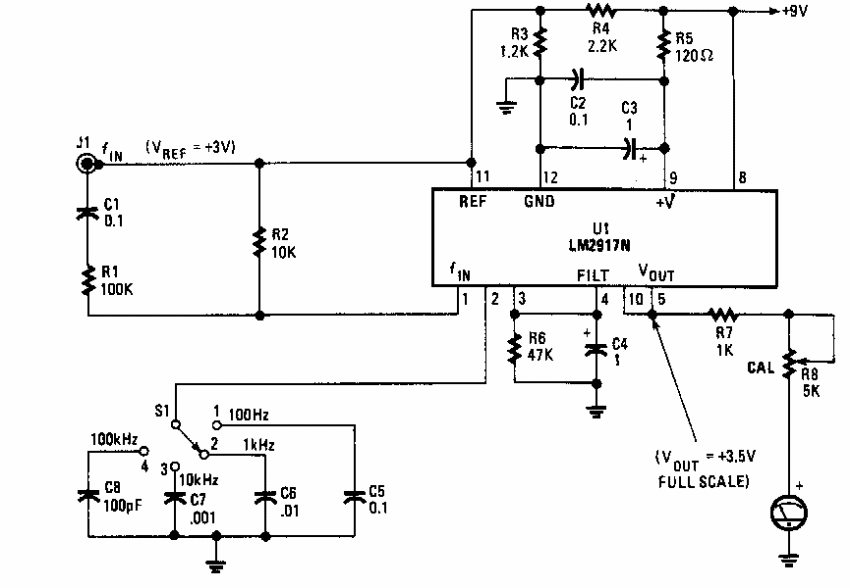

Frequency meter (CB7383E)

Details
Written by: Newton C. Braga



    Found in a Popular Electronics from the 90s, this circuit reaches 100 kHz and battery power is recommended.
