This circuit was obtained from a 1968 Philips publication. The transistors are of the time. Dual transistors can be replaced by matching pairs. The feed is symmetrical. The bandwidth goes from 0 to 10 MHz.
| Clique na imagem para ampliar |

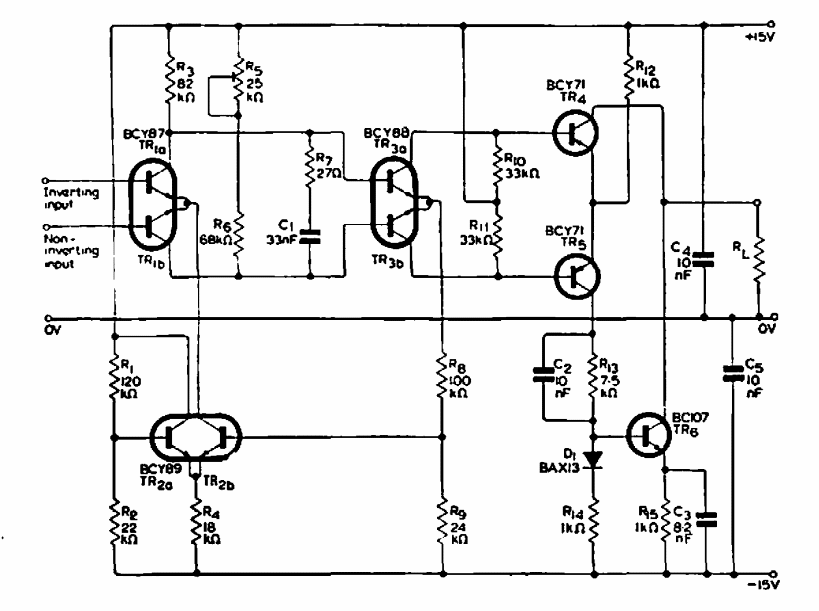

100 000 Gain Amplifier (CB6639E)
