Transient free divider by 8 (CB6825E)

Details
Written by: Newton C. Braga

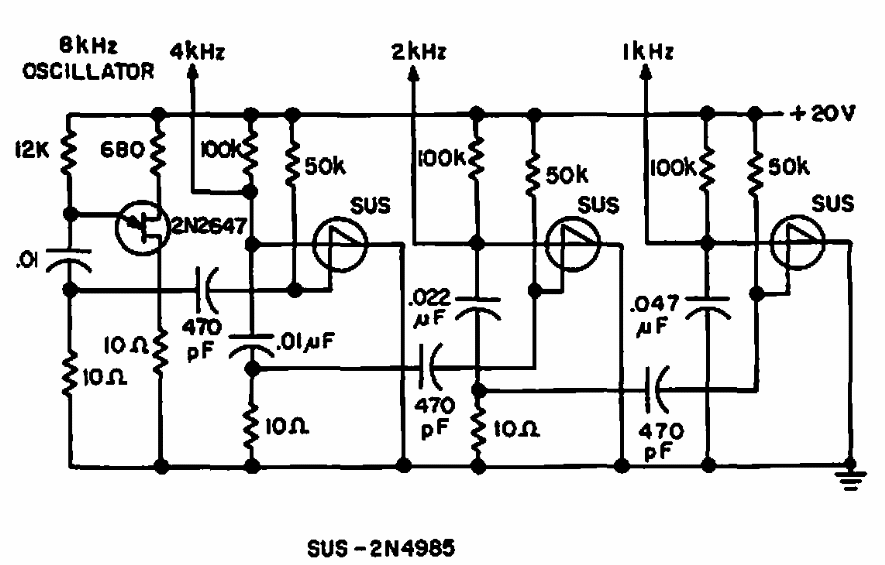

    This circuit is from 1967 General Electric documentation. It uses SUS which are not very common components today. The maximum frequency should not exceed a few kilohertz.
