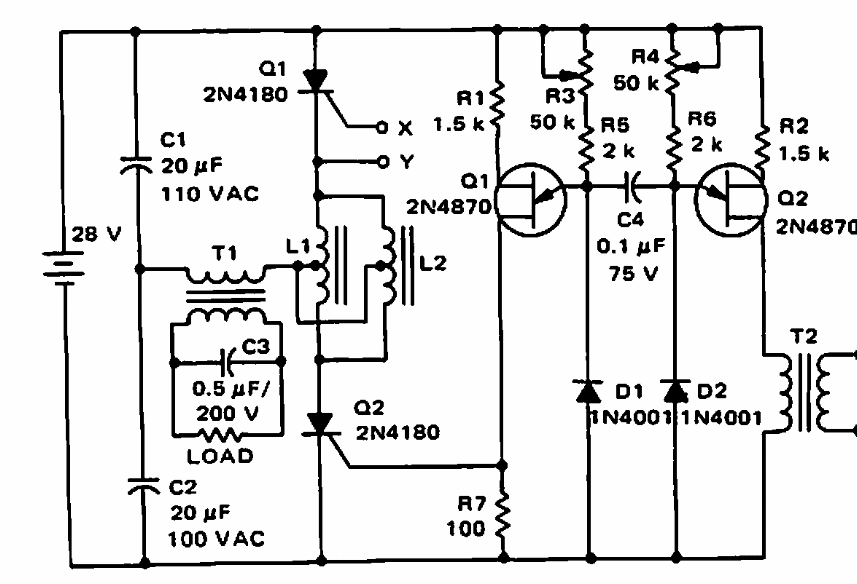

This circuit was obtained in Motorola documentation from 1969. The components are from that time. In the trimpots, the frequency and symmetry of the generated signal is adjusted.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
120 V x 40 W x 400 Hz inverter (CB7271E)
- Details
- Written by: Newton C. Braga
