Unit Gain Stage (CB6157E)

Details
Written by: Newton C. Braga

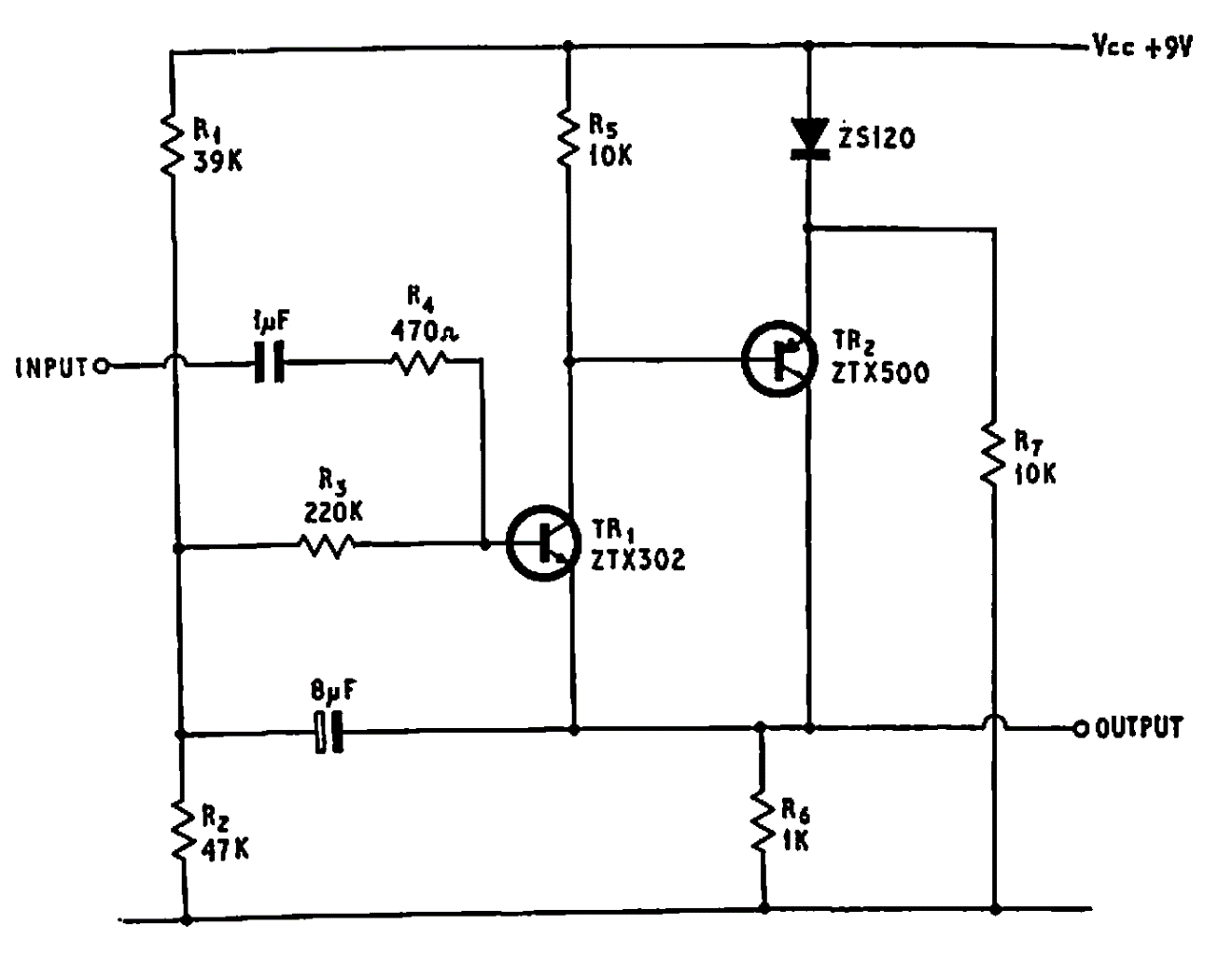

     This high impedance step suggested by an English publication can operate up to 1 MHz with 1 V rms output. Input impedance is 1 M ohm.
