Motion Sound Control (CB6312E)

Details
Written by: Newton C. Braga

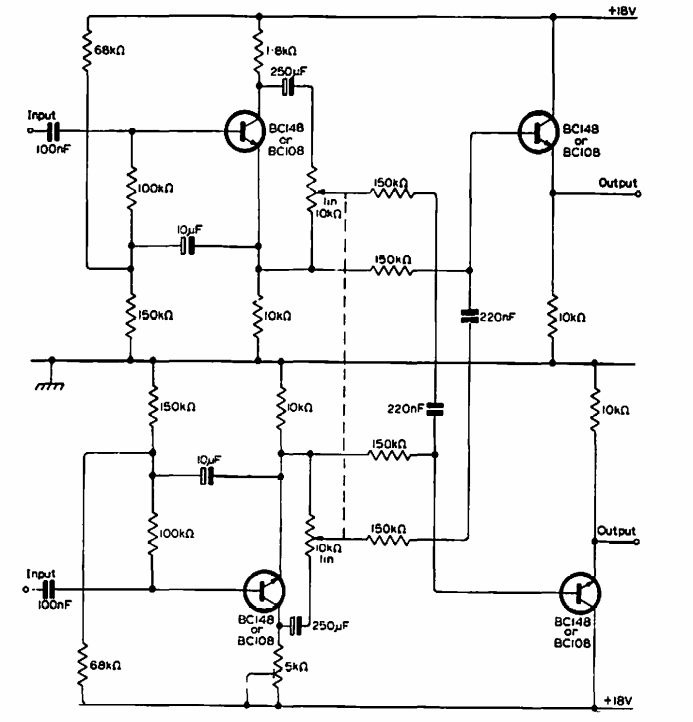

     With this circuit you can produce the sound effect passing from one channel to another. The circuit is from Mullard documentation from the 1960s. The transistors may be the BC548.




| Clique na imagem para ampliar |
