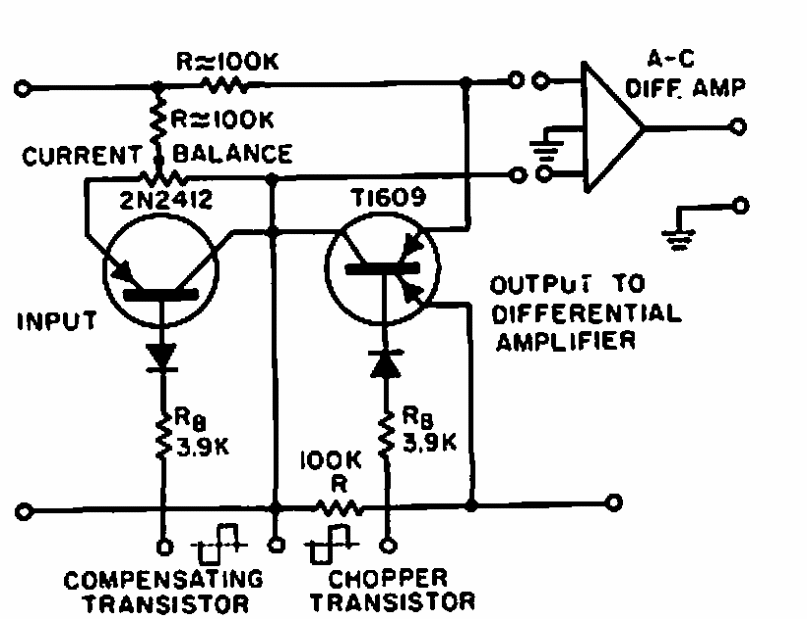

This circuit was found in a 1964 Electronic Design. The components are of the time, and modern equivalents can be used. Note the multi-emitter transistor.
| Clique na imagem para ampliar |
Noise Canceling (CB6459E)
- Details
- Written by: Newton C. Braga
