Sequential Control (CB6553E)

Details
Written by: Newton C. Braga

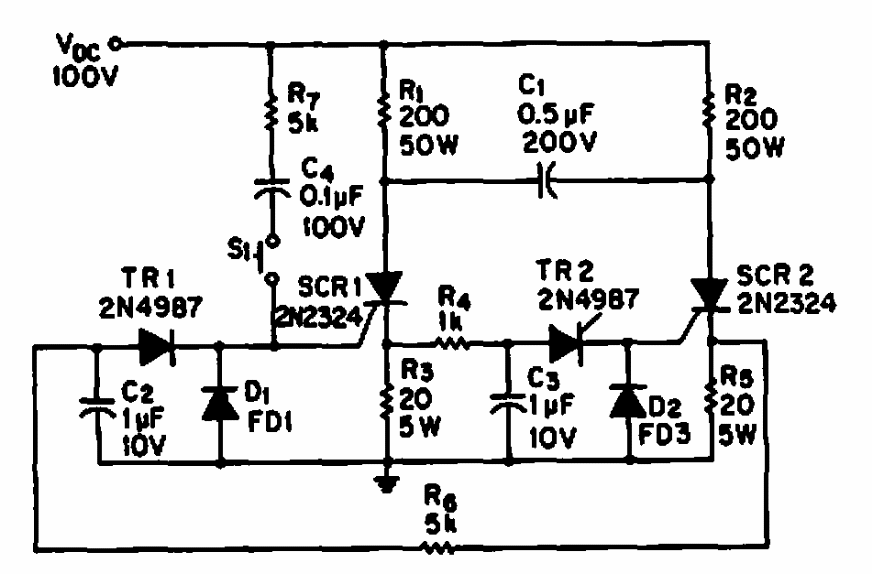

    This circuit is from 1970 documentation. The SCRs are types of the era that can be replaced with 106 Series equivalents. The circuit is powered with 100 V dc.




| Clique na imagem para ampliar |
