Short Circuit Proof Lamp Driver (CB6850E)

Details
Written by: Newton C. Braga

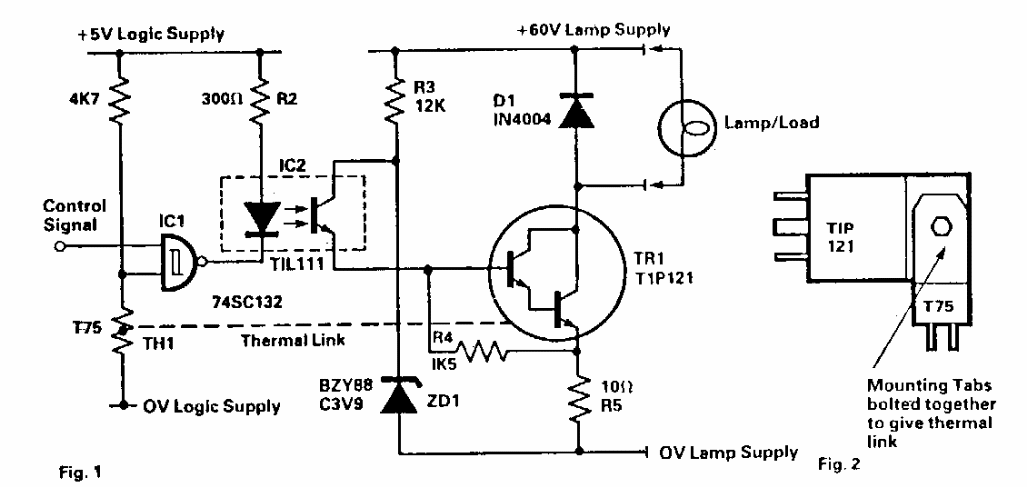

     This circuit from the 90s, found in an Electronic Engineering can be used as a shield since its control is digital with TTL logic of 5 V. The components used are still common today.
