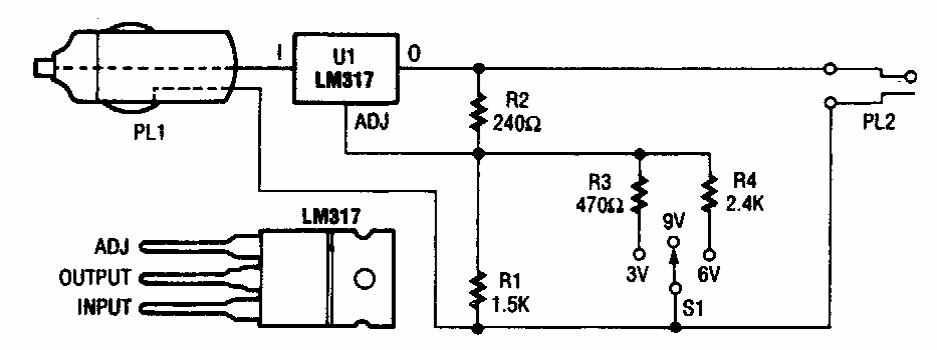

Car adapter (CB7252E)

Found in an American publication from the 90s, this circuit allows the supply of 3, 6 and 9 V devices with currents up to 1.5 A in the car.

| Clique na imagem para ampliar |
