Noise-free 60 Hz pulses (CB7293E)

Details: Written by: Newton C. Braga

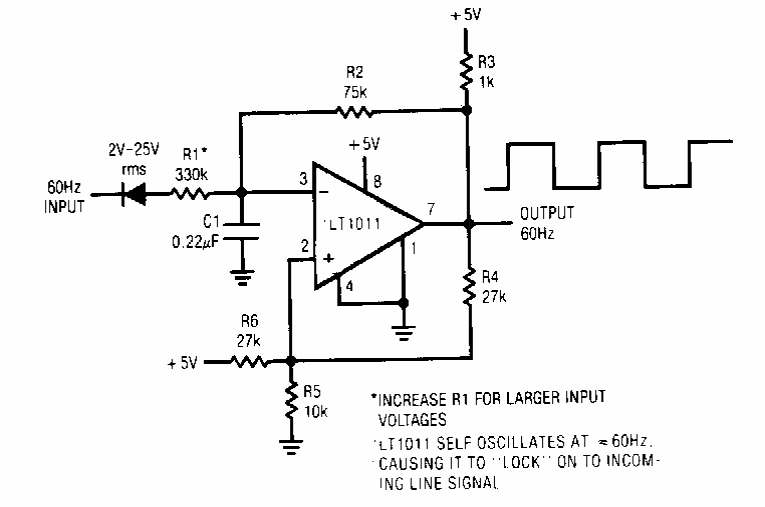

Suggested by Linear Technology in an old documentation, this circuit produces 60 Hz rectangular pulses from the power grid. The circuit is free of noise.
