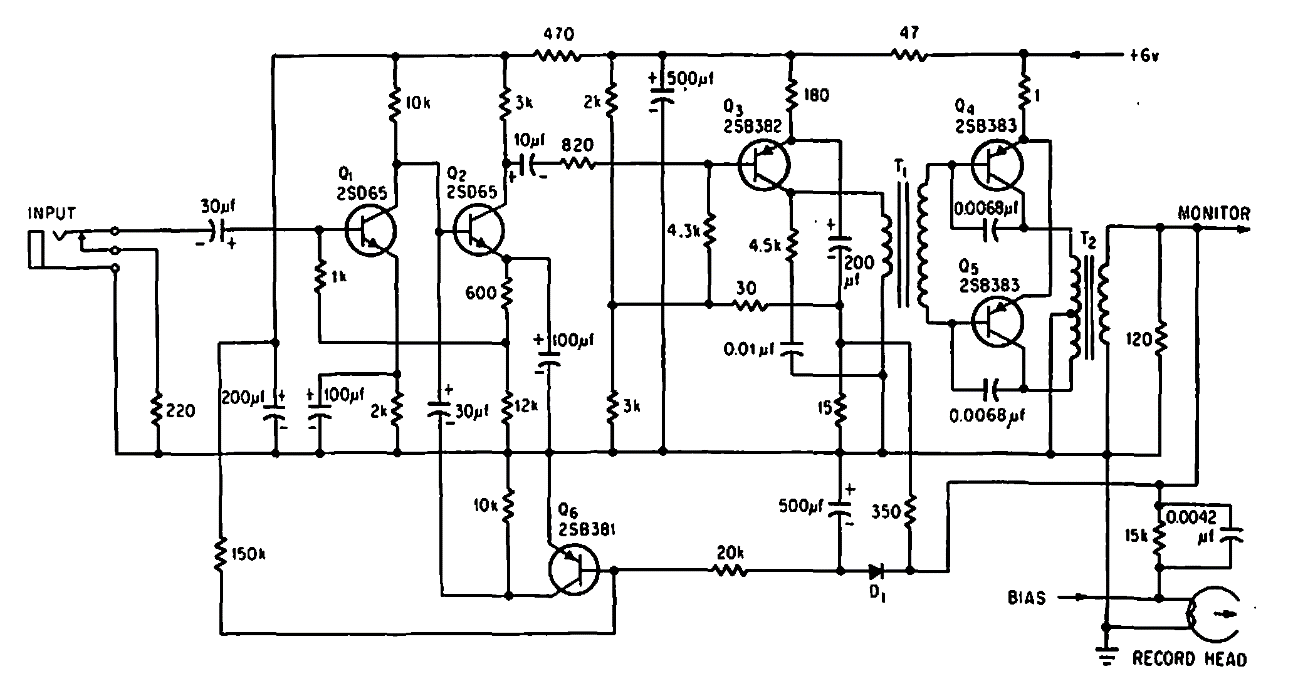

This circuit was found in an American documentation from 1966. The transistors are from that time as well as the driver and output transformers. The circuit is powered by 6 V and has a monitor output.
| Clique na imagem para ampliar |
AGC for tape recording (CB7302E)
- Details
- Written by: Newton C. Braga
