FET Follower (CB6132E)

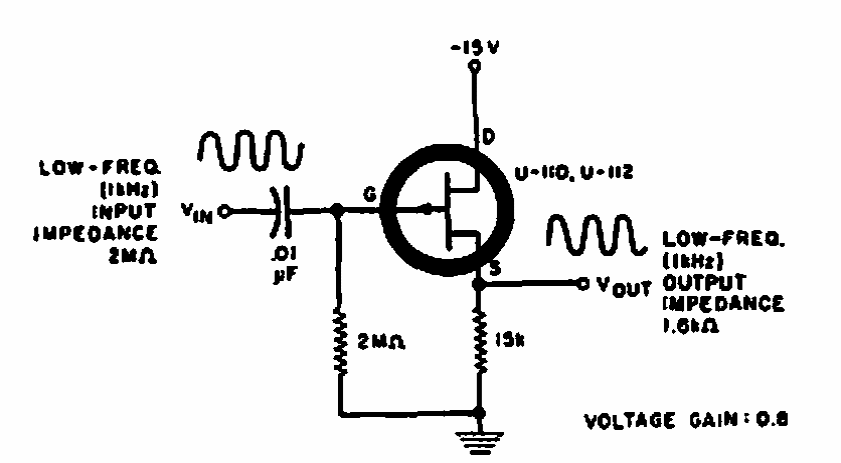

This 1967 Electronics World circuit is suitable for frequencies up to 1 MHz. The setting applies to virtually any junction FET.

| Clique na imagem para ampliar |

Low Pass Second Order Filter 741 (CB25818E)
This unity gain circuit was found in the February 1995 Electronics Now magazine. The frequency is 10 kHz,...
Pulse Compressor and Expander (CB6658E)
Found in a 1967 Electronic Design, this transistorized circuit compresses and then expands a pulse....
Simple pulse extender (CB8921E)
This TTL pulse stretcher or stretcher was found in a 90's EDN. The time constant R x C1 determines...
