DC to DC Converter (CB6580E)

Details
Written by: Newton C. Braga

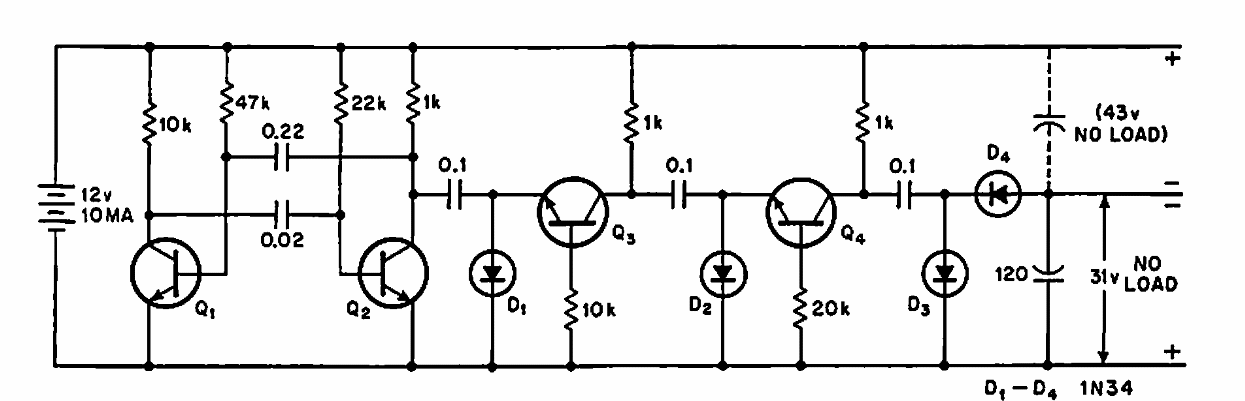

     This circuit was found in an American documentation from 1970. We can increase the number of multiplier steps to have higher output voltage. The operating frequency is around 1.35 kHz.
