Square Signal Phase Detector (CB6670E)

Details
Written by: Newton C. Braga

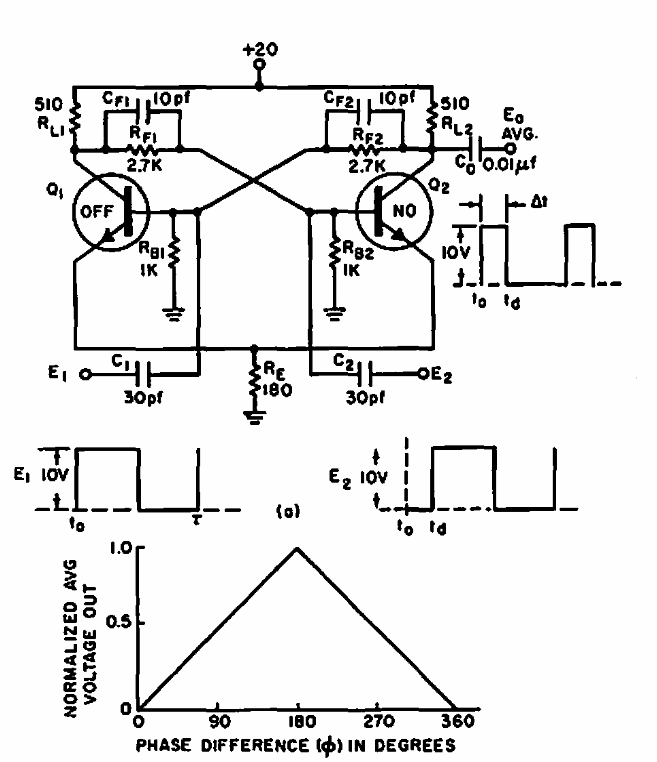

    This detector was found in an old Electronic Design using transistors of the time. The circuit can be made with modern equivalent transistors. See the charts with your performance.




| Clique na imagem para ampliar |
