Nipkow amplifier for disc (CB7241E)

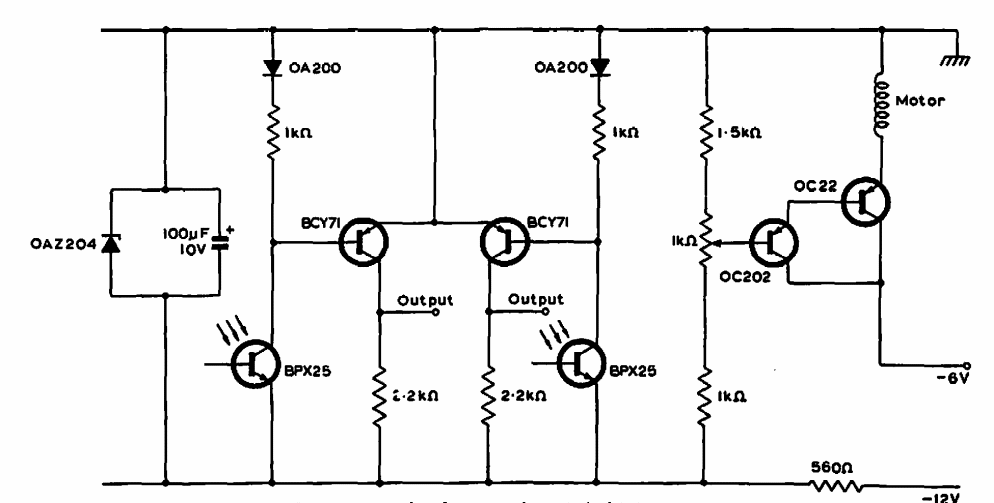

Found in a 1967 documentation, this infrared amplifier is intended for use in a Nipkow disc camera controlling a motor.
