Common coil assisted ignition (CB6384E)

Details
Written by: Newton C. Braga

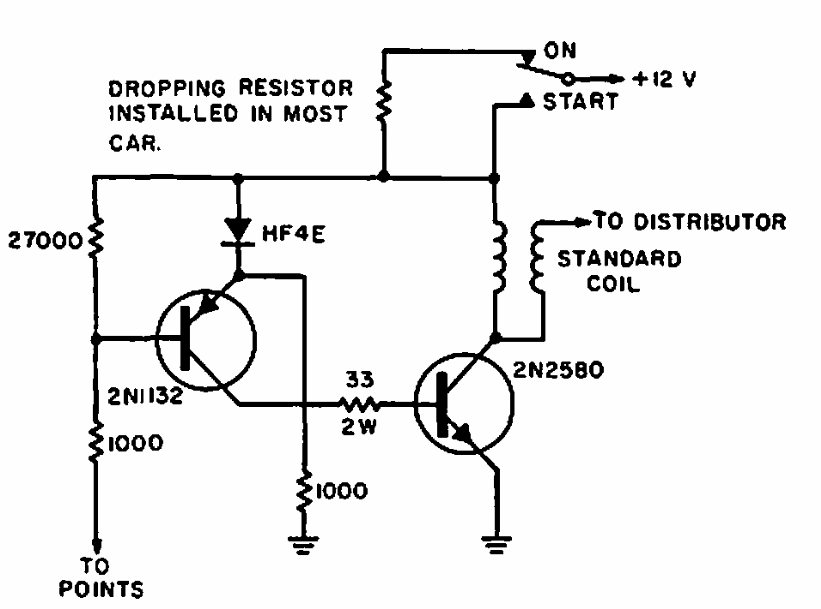

     This circuit was found in a 1964 Electronic Design. The transistors are of the time, but can be employed as modern equivalents. The system is for car with contact breaker.
