Gain 70 000 Amplifier (CB6638E)

Details: Written by: Newton C. Braga

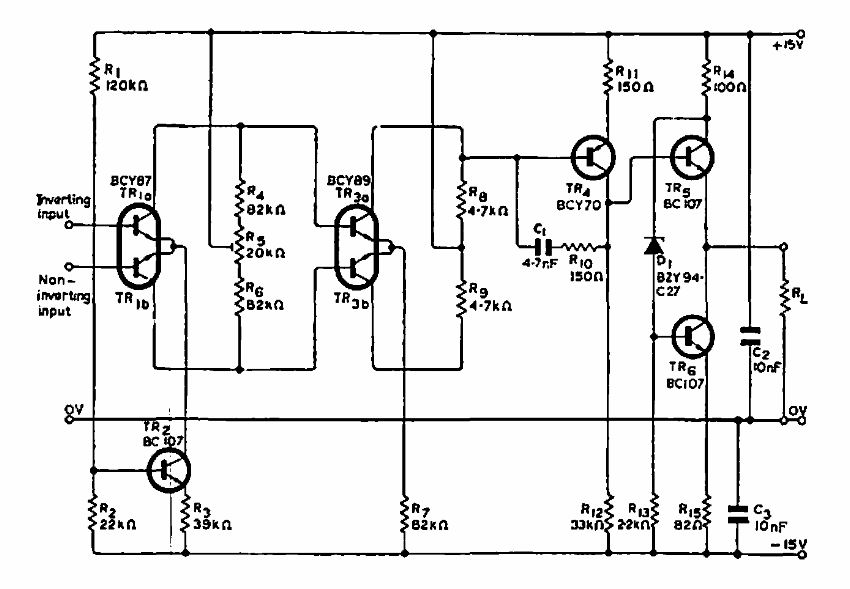

This circuit that has a response from 10 Hz to 700 kHz was found in Philips documentation from 1968. Dual transistors can be replaced by matched pairs.
