Sequential LED (CB7046E)

Details
Written by: Newton C. Braga

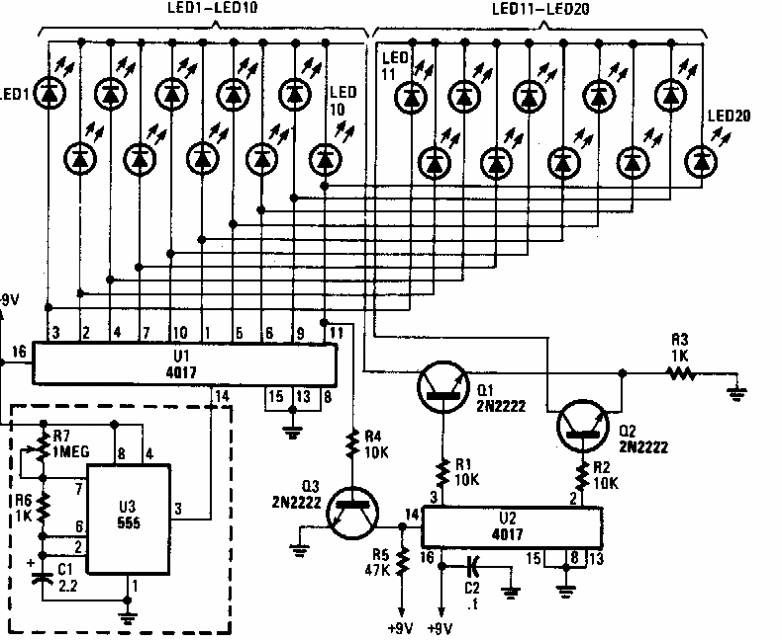

     This circuit was obtained in an old Popular Electronics. It makes use of quite common components. The speed of the effect is set to R7. The circuit drives 20 LEDs.




| Clique na imagem para ampliar |
