Oscillator (CB7096E)

Details: Written by: Newton C. Braga

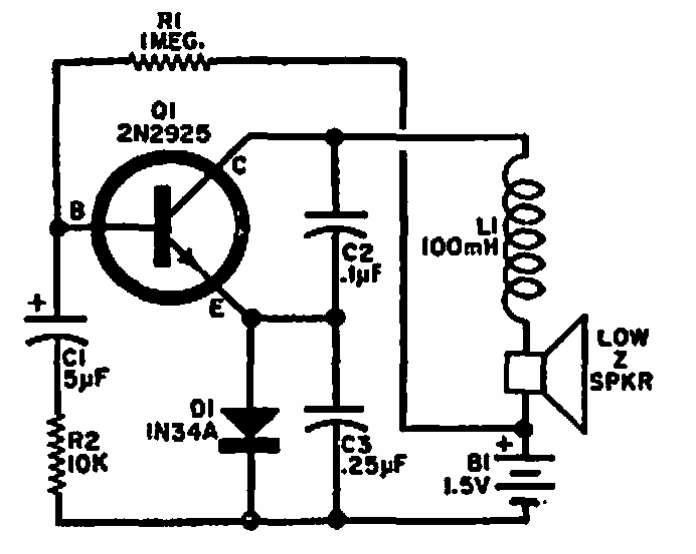

This circuit from Popular Electronics powers a small speaker. The transistor can be of general use and the capacitors can be altered to change the sound generated.
