Half wave dimmer (CB7204E)

Details: Written by: Newton C. Braga

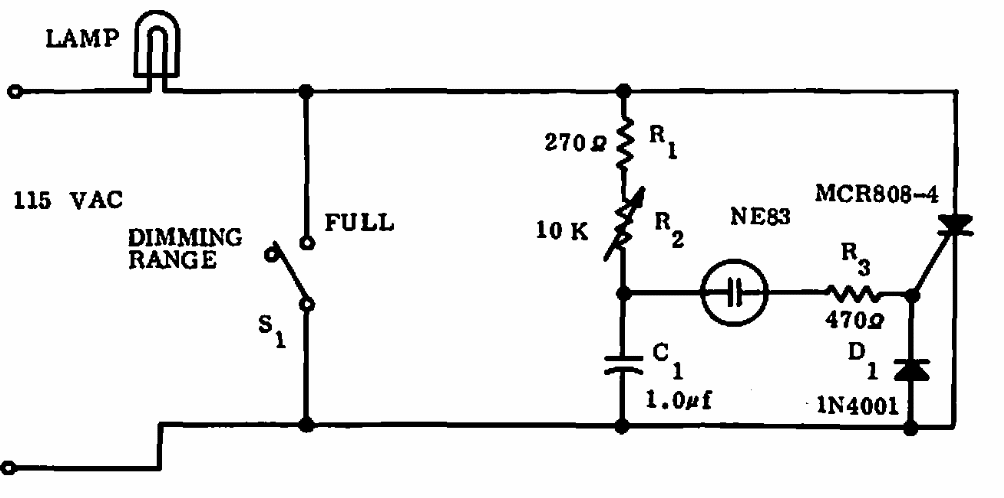

Found in a 1965 Motorola documentation, this circuit uses a neon lamp as a trigger element. The SCR admits equivalents and the lamp must be incandescent.
