70 dB Dynamic Range Limiter (CB6311E)

Details
Written by: Newton C. Braga

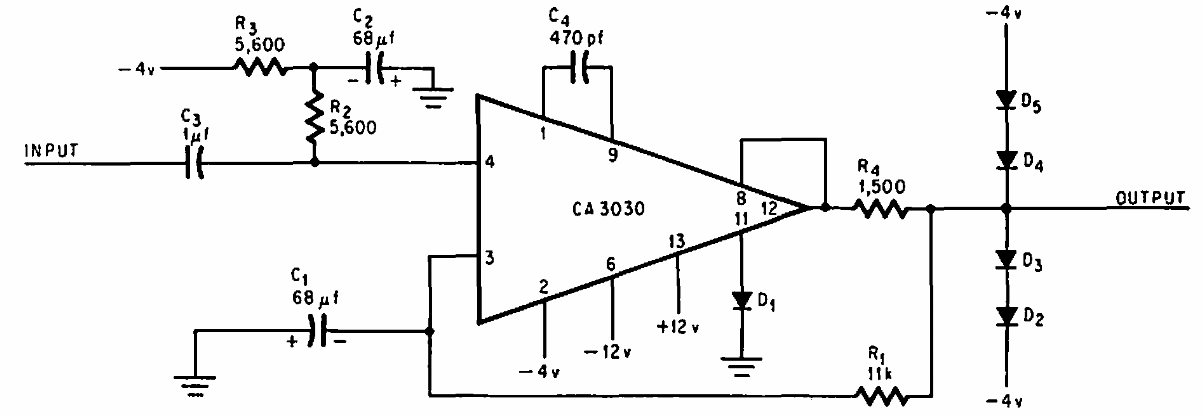

     This circuit was found in a 1968 RCA documentation. The circuit can be designed with operational equivalents. Input signals can be up to 6 V in amplitude and the limitation is 78 dB.




| Clique na imagem para ampliar |
