Power Control (CB6552E)

Details
Written by: Newton C. Braga

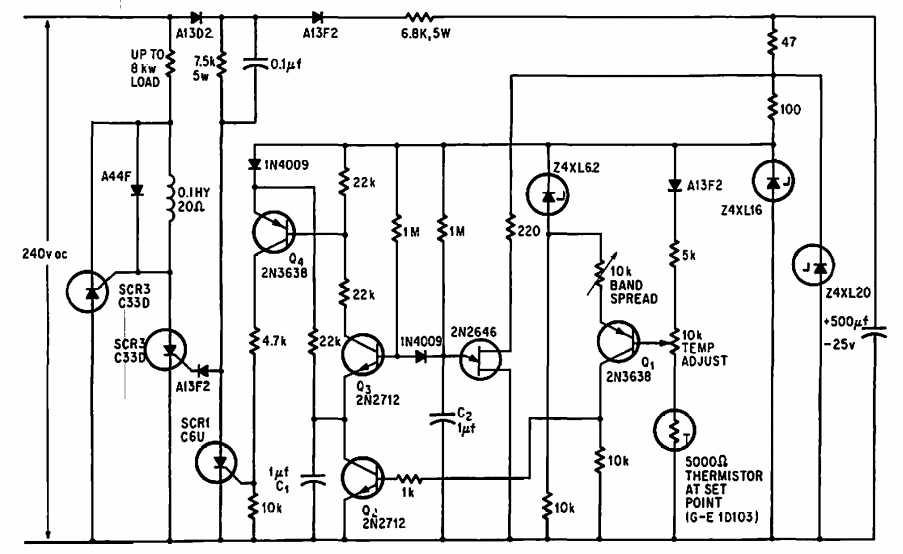

     Using only discrete components, this circuit can control loads up to 8 kW. SCRs should be appropriate and equipped with large heat sinks.
