Field strength meter (CB7358E)

Details
Written by: Newton C. Braga

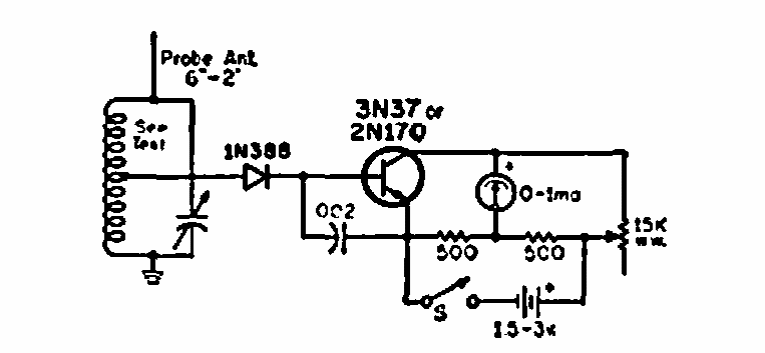

    This tuned circuit was found in a 1966 Electronic Circuit Handbook. The transistor can be any modern general-purpose equivalent.
