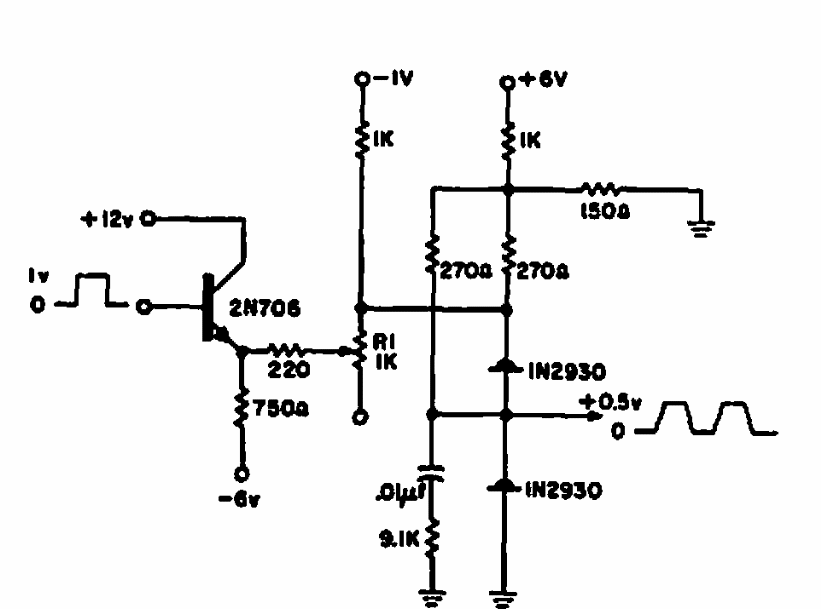

2 MHz comparator (CB6500E)

Details
Written by: Newton C. Braga



    This circuit was obtained from an Electronics Design of 1964. The circuit makes use of tunnel diodes that are uncommon today. The circuit works with very weak signals.
