13 to 110 V Inverter (CB6579E)

Details: Written by: Newton C. Braga

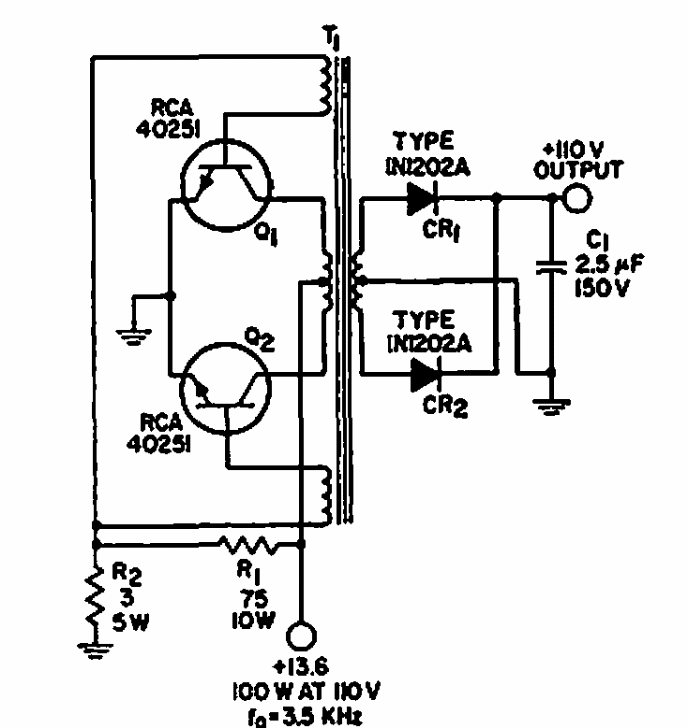

This circuit supplies a voltage of 110 V from car battery with 110 V x 100 W output. Transformer data not indicated. The operating frequency is 3.5 kHz.
