Buffered Detector (CB6669E)

Details
Written by: Newton C. Braga

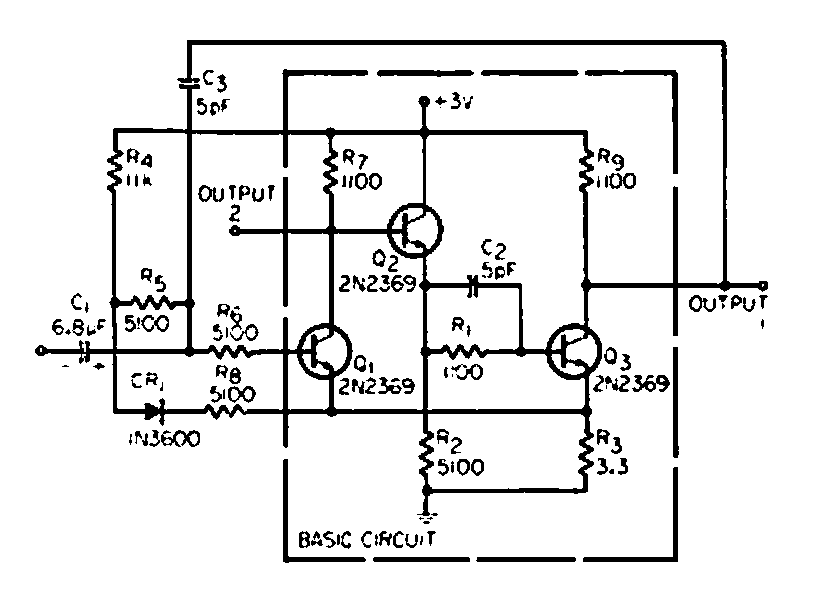

    This circuit was found in 1967 General Electric documentation. The transistors of the time can be replaced by modern equivalents.




| Clique na imagem para ampliar |
