Flasher MOSFET (CB6756E)

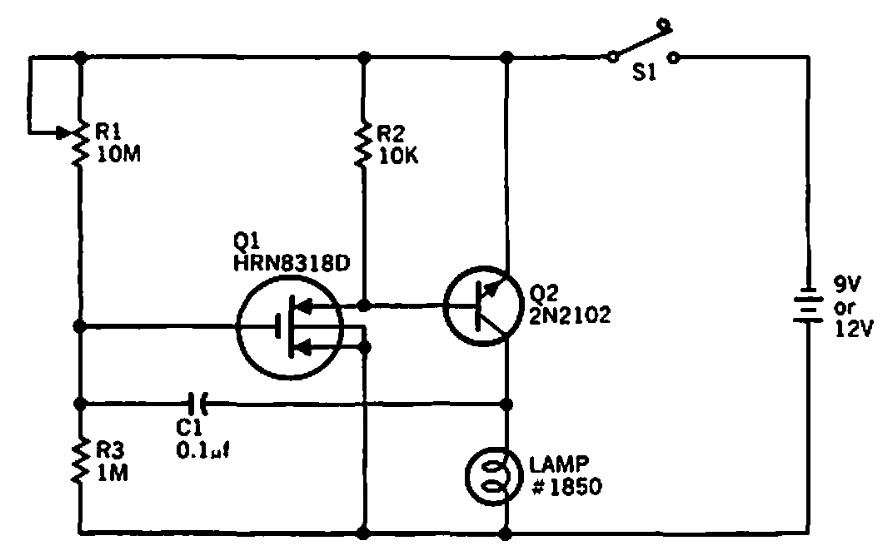

This circuit was found in a Hughes manual of 1068 using a MOSFET of the time. The circuit can be adapted to use modern equivalent MOSFETs.

| Clique na imagem para ampliar |

Digital Voltmeter (CB18102E)
We present a circuit formed by six voltage comparators. Each comparator will analyze the voltage...
Time base (CB8933E)
This circuit can generate time base signals from 5 to 1500 Hz. We find it in a documentation about old neon...
Undervoltage Switch with the CA3140 (CB12144E)
In this circuit the CA3140, an operational amplifier, is used as a comparator with the zener diode...
