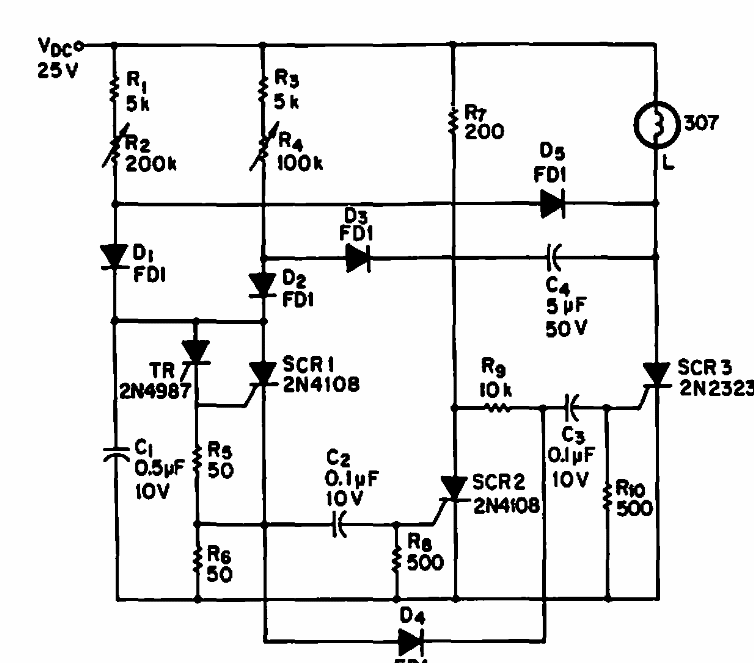

Flasher with two settings (CB6802E)

Found in EEE documentation, this circuit can have the duration and frequency adjusted separately. SCRs can be modern equivalent types.

| Clique na imagem para ampliar |
