Electronic telegraphic key (CB6477E)

Details
Written by: Newton C. Braga

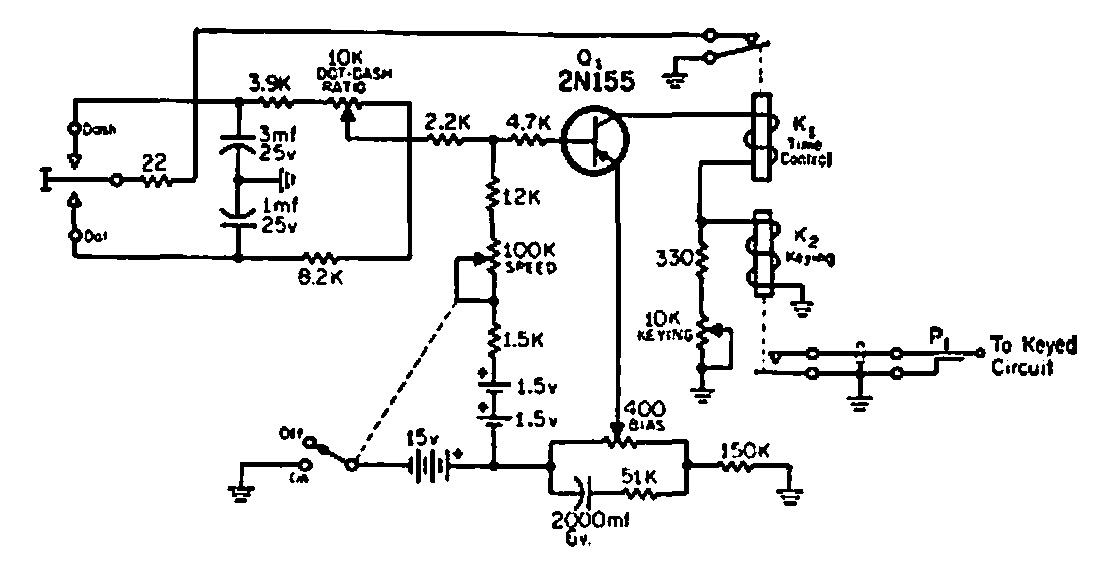

     Found in a 1964 CQ magazine this circuit consists of an automatic telegraphic key, providing the correct duration for points and dashes. The circuit can be made with a current PNP transistor.
