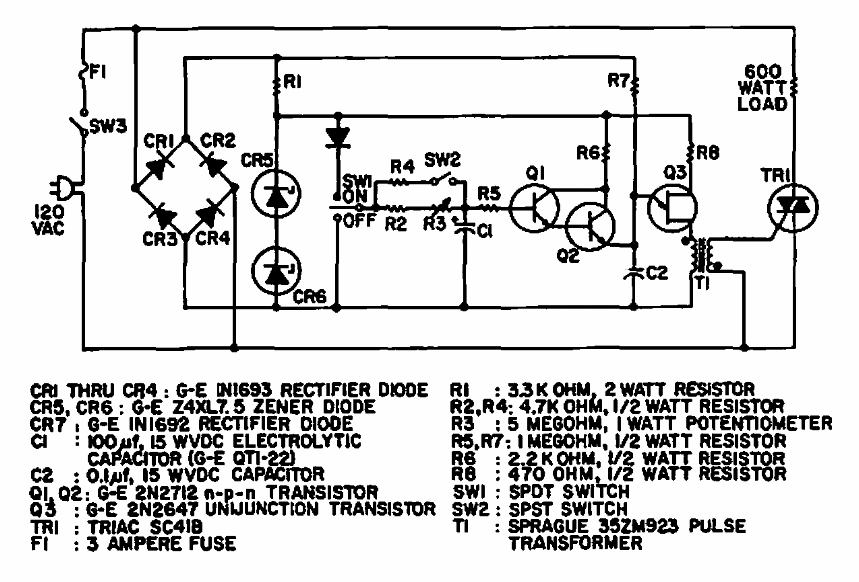

When triggered, this circuit causes a lamp to automatically reduce its brightness until it goes out in an interval that can be adjusted up to 20 minutes. The circuit is from a 1965 General Electric documentation.
| Clique na imagem para ampliar |
20-minute dimmer (CB7203E)
- Details
- Written by: Newton C. Braga
