Interface (CB7251E)

Details
Written by: Newton C. Braga

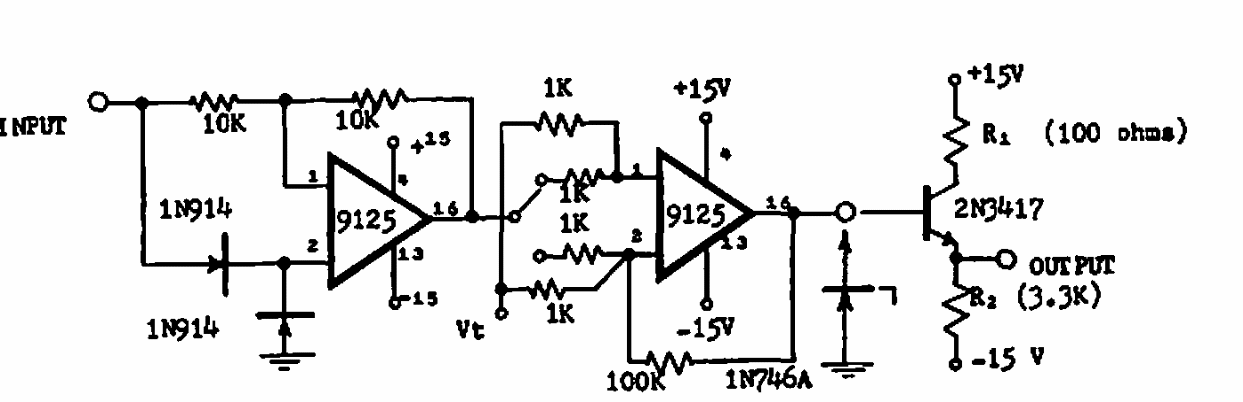

     This interface or shield circuit provides an output 1 from 3.3 V logic. The circuit is from old Optical Electronics documentation.
