Trigger generator for inverters (CB7270E)

Details
Written by: Newton C. Braga

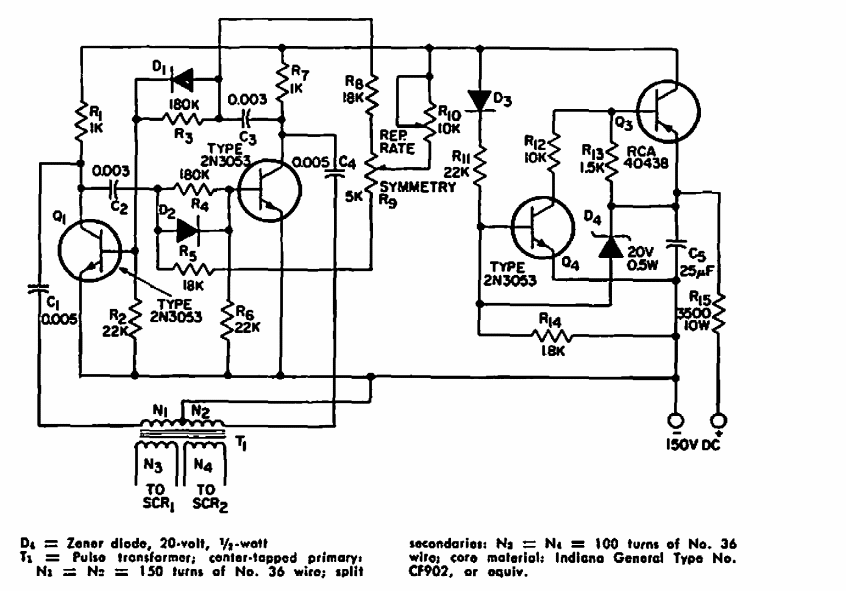

     Found in RCA documentation from the 1970s, this circuit is intended for firing thyristors in inverter circuits. The components are from the era and the operating frequency is 10 kHz.
