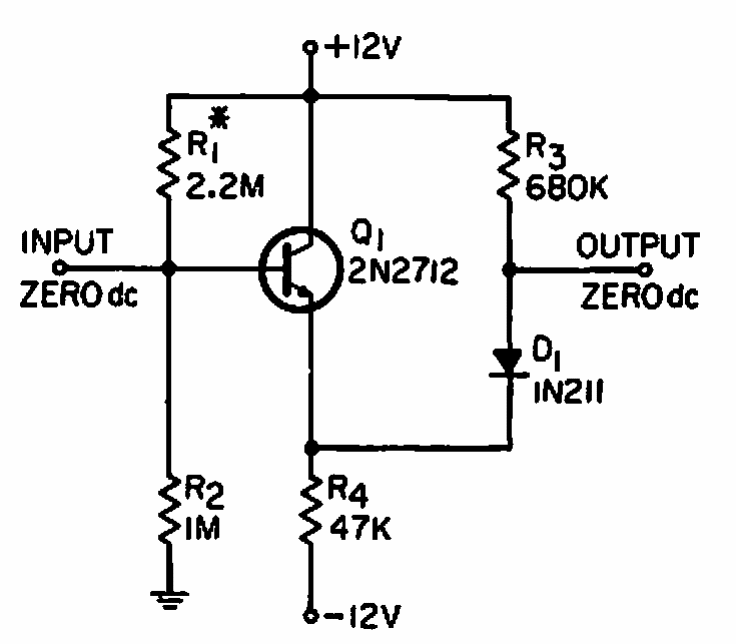

Emitter Follower (CB6155E)

Details
Written by: Newton C. Braga



    This circuit was found in a 1967 US documentation. The circuit applies to modern general purpose transistors. The circuit has no offset. The power supply must be symmetrical.
