Xenon Flash (CB6755E)

Details
Written by: Newton C. Braga

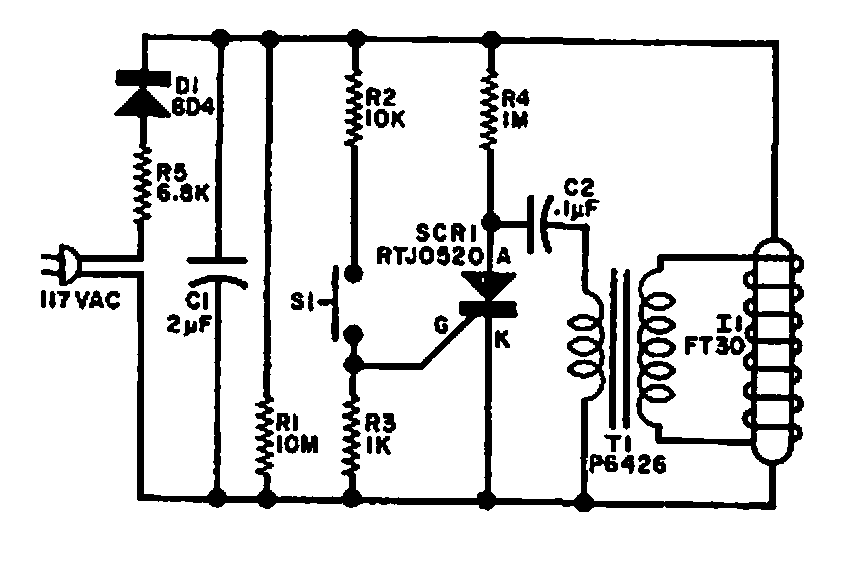

    Found on Popular Electronics from 1970, this circuit fires a xenon lamp producing a C1-dependent flash. The circuit is suitable for 110 V mains.
