Frequency to voltage converter (CB6960E)

Details
Written by: Newton C. Braga

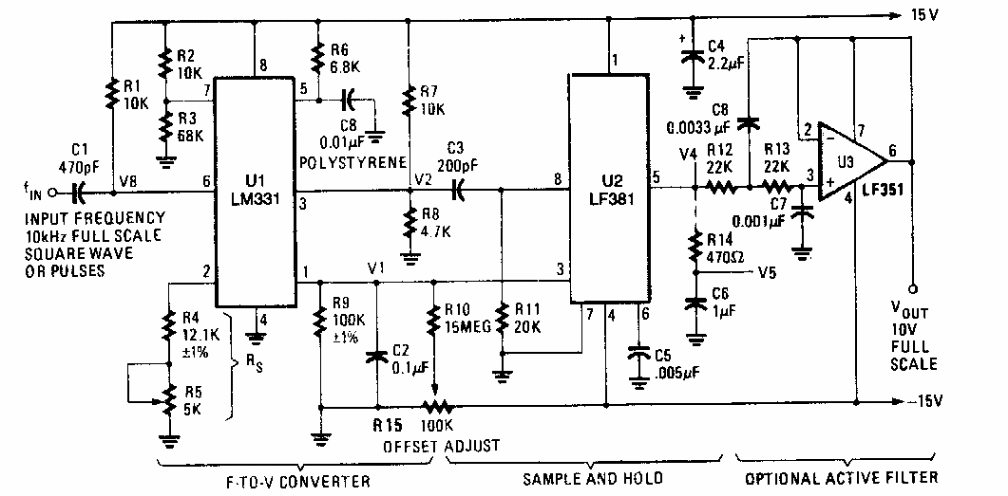

     This circuit of a Popular Electronics from the 90s makes use of components of the time. The circuit has sampling and retention capabilities and a conversion rate of 1V / kHz.
