VLF to VHF active antenna (CB6980E)

Details
Written by: Newton C. Braga

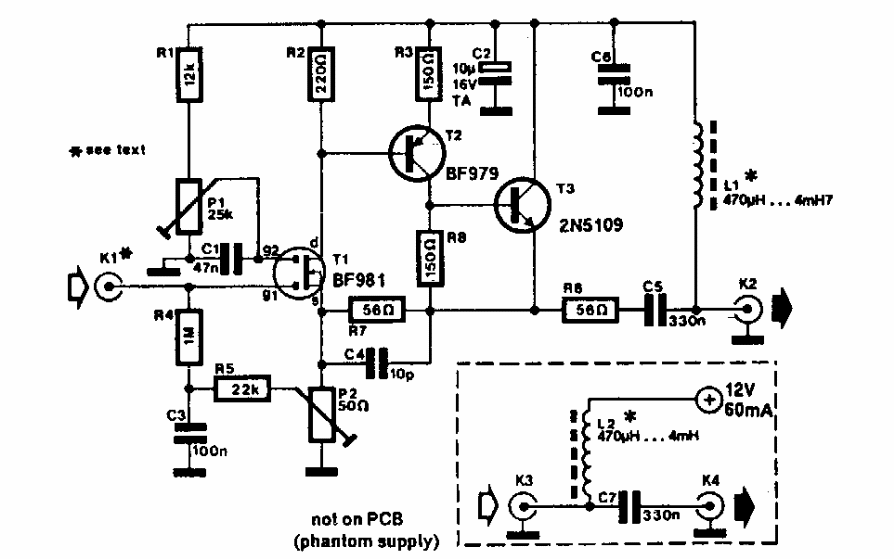

     Found in a European magazine from the 1980s, this circuit can amplify signals from 10 kHz up to over 220 MHz with good gain. MOSFET supports equivalents.




| Clique na imagem para ampliar |
