PA7601 amplifier (CB7115E)

Details
Written by: Newton C. Braga

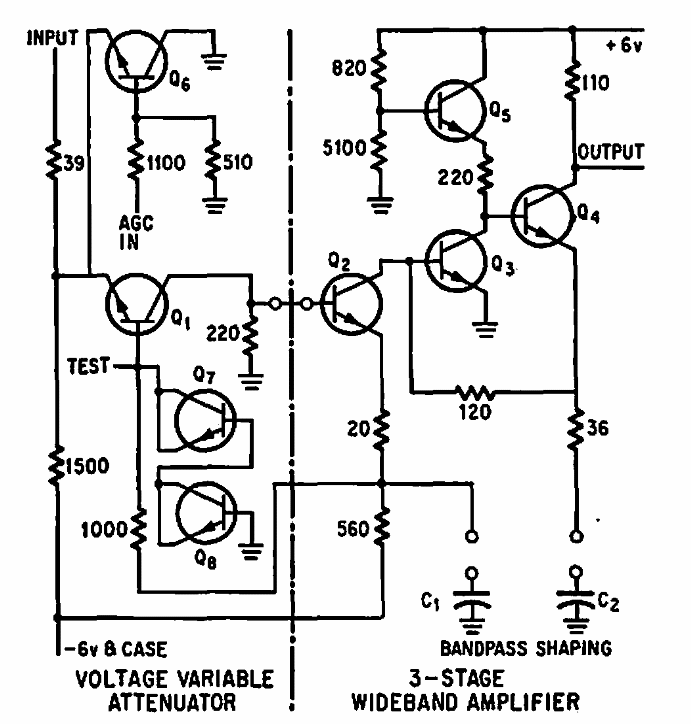

    This circuit with the PA7601 was found in a 1967 Philco-Ford documentation. The circuit has a pass band from 45 to 120 MHz.




| Clique na imagem para ampliar |
