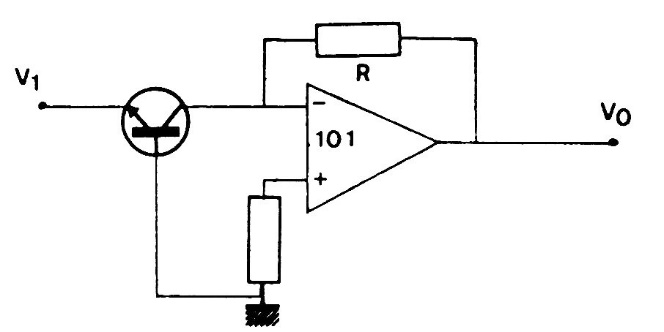

We found this configuration in an integrated circuits manual. The transistor, which can be of any general-purpose type, provides an exponential response to the circuit. The operational admits equivalent and must be supplied by a symmetrical source according to the application.
