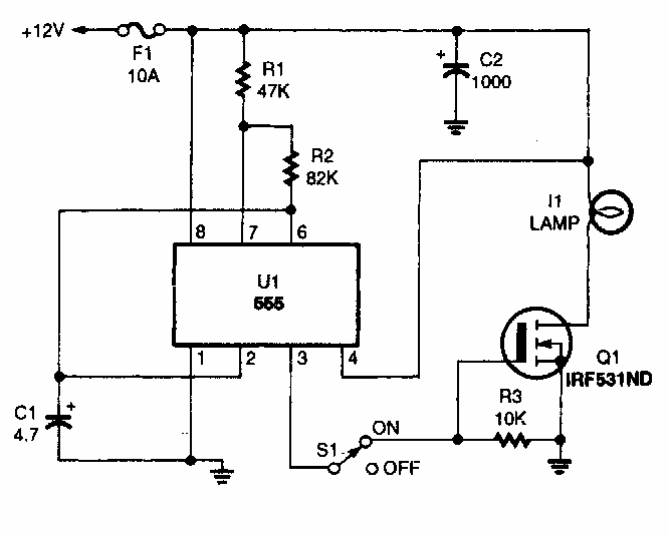

Indicated by Popular Electronics to be used with a car headlight, this circuit can also have applications in fixed signaling. The power MOSFET must be in accordance with the lamp.
| Clique na imagem para ampliar |
Power indicator (CB7255E)
