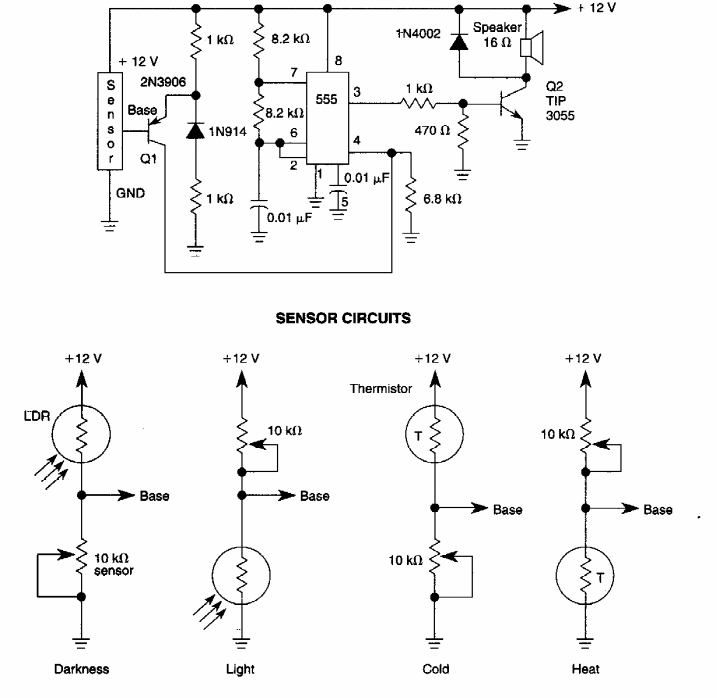

This circuit that can be activated by light or heat was found in an old American documentation, but the components it uses are perfectly current. The power transistor shall be fitted with a heat sink.
| Clique na imagem para ampliar |
Multi Sensor Alarm (CB6424E)
- Details
- Written by: Newton C. Braga
