Adjustable Analog Comparator (CB6499E)

Details
Written by: Newton C. Braga

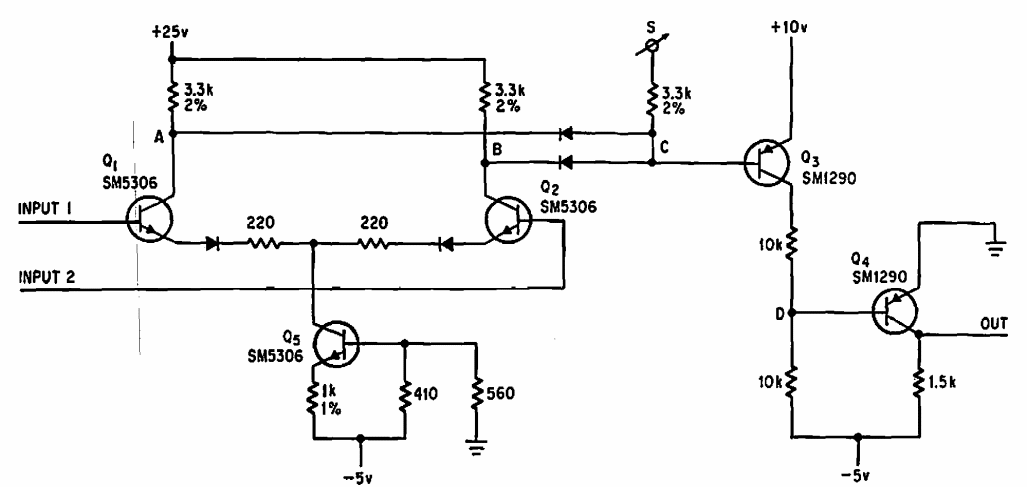

     This circuit can be adjusted between 0.2 and 2 V to trigger with chosen voltages comparing them with the input voltages. We found it in a 1967 documentation.
