Symmetrical Inverter (CB6578E)

Details
Written by: Newton C. Braga

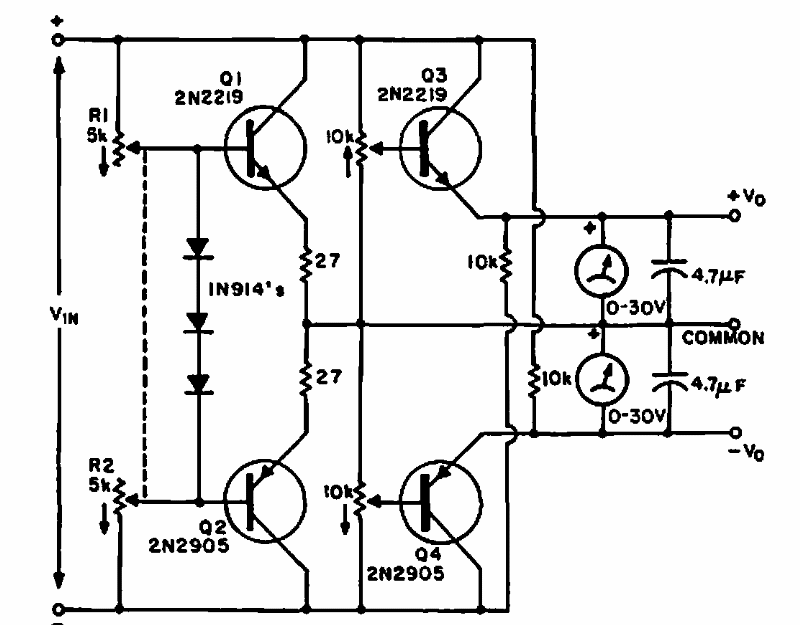

    This circuit was found in a 1967 Electronic Design and can be adapted to use modern equivalent components. The circuit provides a symmetrical voltage with the same value as the single input voltage.




| Clique na imagem para ampliar |
