Instrument driver (CB7357E)

Details
Written by: Newton C. Braga

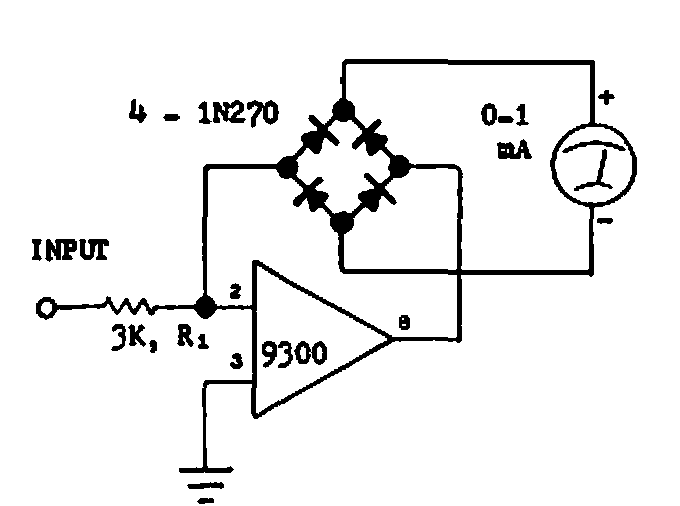

    This circuit was found in American documentation from the 1960s. The operational amplifier is from that time, but the configuration applies to modern equivalents.
