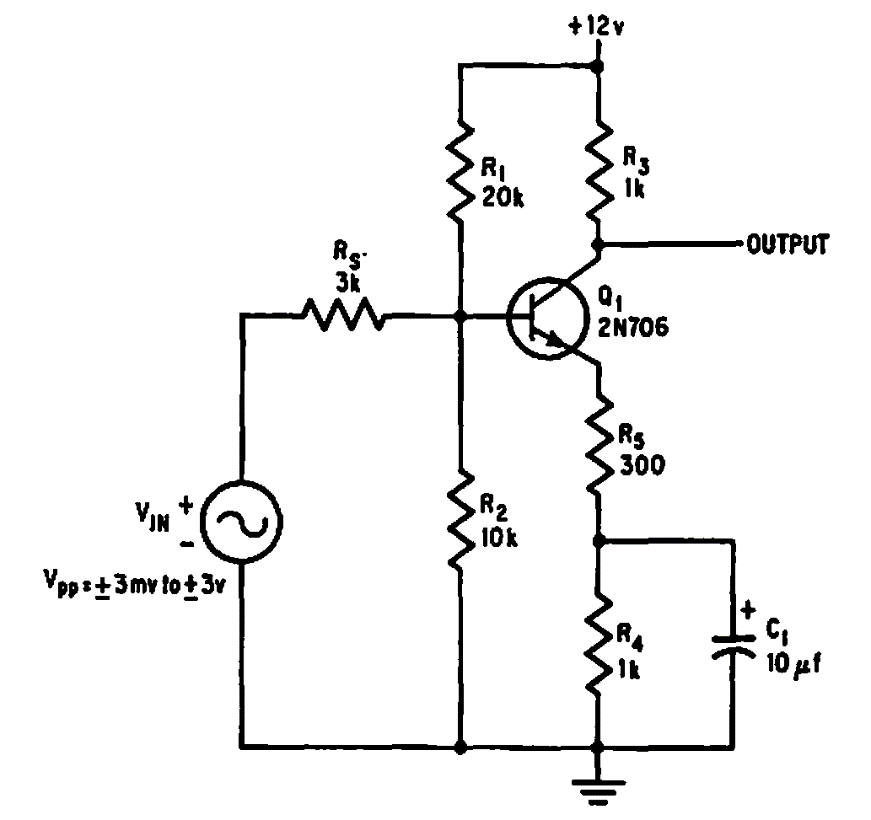

Negative Feedback Stage (CB6131E)

Details
Written by: Newton C. Braga



    This circuit is from a 1967 US publication. The configuration can serve as a basis for designs with modern components.
