Triac Power Control (CB6551E)

Details
Written by: Newton C. Braga

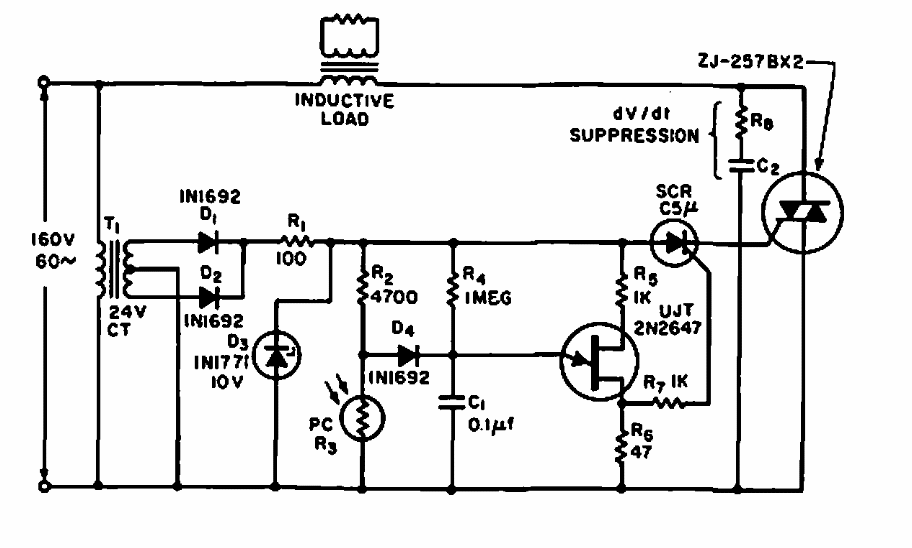

    We found this circuit in a 1964 Electronic Design. The triac and SCR can be replaced with modern equivalents according to the load. The circuit is for 160V network.
